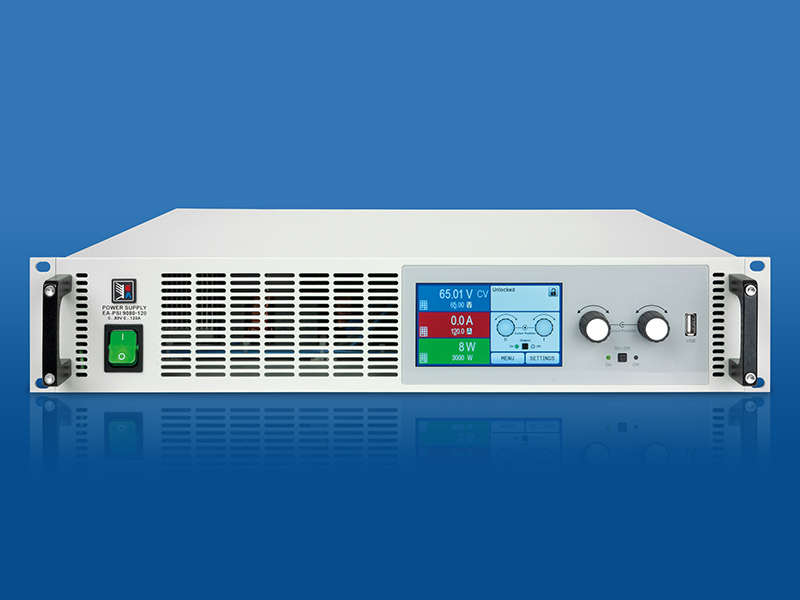

EA PSI 9000 2U Series
EA PSI 9000 2U Series is a adjustable, programmable, 19” 3U rack-mount format Gorilla glass TFT touch display, versatile function generator, user profiles, resistance regulation, solar (PV) simulation, fuel-cell (FC) simulation Auto-ranging output On board 2-way interface (USB/analogue), Plug N’ Play slot for retrofitting additional interfaces such as Ethernet, CAN, CANopen, Profibus, Profinet, RS232 and more Voltages 0-40V up to 0-750VDC Currents 0-4A up to 0-120A Powers 1kW up to 3kW
Product variants
Features
Datasheet
Product variants
| Laboratory power supply 0..80V/0..40A | EA-PSI 9080-40 2U 19″ 2U 1000W |
model no. |
| Laboratory power supply 0..200V/0..15A | EA-PSI 9200-15 2U 19″ 2U 1000W | |
| Laboratory power supply 0..360V/0..10A | EA-PSI 9360-10 2U 19″ 2U 1000W | |
| Laboratory power supply 0..500V/0..6A | EA-PSI 9500-06 2U 19″ 2U 1000W | |
| Laboratory power supply 0..750V/0..4A | EA-PSI 9750-04 2U 19″ 2U 1000W | |
| Laboratory power supply 0..80V/0..60A | EA-PSI 9080-60 2U 19″ 2U 1500W | |
| Laboratory power supply 0..200V/0..25A | EA-PSI 9200-25 2U 19″ 2U 1500W | |
| Laboratory power supply 0..360V/0..15A | EA-PSI 9360-15 2U 19″ 2U 1500W | |
| Laboratory power supply 0..500V/0..10A | EA-PSI 9500-10 2U 19″ 2U 1500W | |
| Laboratory power supply 0..750V/0..6A | EA-PSI 9750-06 2U 19″ 2U 1500W | |
| Laboratory power supply 0..80V/0..120A | EA-PSI 9080-120 2U 19″ 2U 3000W | |
| Laboratory power supply 0..200V/0..50A | EA-PSI 9200-50 2U 19″ 2U 3000W | |
| Laboratory power supply 0..360V/0..30A | EA-PSI 9360-30 2U 19″ 2U 3000W | |
| Laboratory power supply 0..500V/0..20A | EA-PSI 9500-20 2U 19″ 2U 3000W | |
| Laboratory power supply 0..750V/0..12A | EA-PSI 9750-12 2U 19″ 2U 3000W | |
| Laboratory power supply 0..40V/0..40A | EA-PSI 9040-40 2U 19″ 2U 1000W | |
| Laboratory power supply 0..40V/0..60A | EA-PSI 9040-60 2U 19″ 2U 1500W | |
| Laboratory power supply 0..40V/0..120A | EA-PSI 9040-120 2U 19″ 2U 3000W | |
| Lab power supply 0…80V/0…40A | EA-PSI 9080-40 2U HS 1000W | |
| Lab power supply 0…200V/0…15A | EA-PSI 9200-15 2U HS 1000W | |
| Lab power supply 0…360V/0…10A | EA-PSI 9360-10 2U HS 1000W | |
| Lab power supply 0…500V/0…6A | EA-PSI 9500-06 2U HS 1000W | |
| Lab power supply 0…750V/0…4A | EA-PSI 9750-04 2U HS 1000W | |
| Lab power supply 0…80V/0…60A | EA-PSI 9080-60 2U HS 1500W | |
| Lab power supply 0…200V/0…25A | EA-PSI 9200-25 2U HS 1500W | |
| Lab power supply 0…360V/0…15A | EA-PSI 9360-15 2U HS 1500W | |
| Lab power supply 0…500V/0…10A | EA-PSI 9500-10 2U HS 1500W | |
| Lab power supply 0…750V/0…6A | EA-PSI 9750-06 2U HS 1500W | |
| Lab power supply 0…80V/0…120A | EA-PSI 9080-120 2U HS 3000W | |
| Lab power supply 0…200V/0…50A | EA-PSI 9200-50 2U HS 3000W | |
| Lab power supply 0…360V/0…30A | EA-PSI 9360-30 2U HS 3000W | |
| Lab power supply 0…500V/0…20A | EA-PSI 9500-20 2U HS 3000W | |
| Lab power supply 0…750V/0…12A | EA-PSI 9750-12 2U HS 3000W | |
| Lab power supply 0…40V/0…40A | EA-PSI 9040-40 2U HS 1000W | |
| Lab power supply 0…40V/0…60A | EA-PSI 9040-60 2U HS 1500W | |
| Lab power supply 0…40V/0…120A | EA-PSI 9040-120 2U HS 3000W |
Features
| Technical details | |
| Product Type: | DC Laboratory Power Supply |
| Housing: | 19″ rack |
| Voltage (U): | 80.00 |
| Current (I) Ampere: | 40.00 |
| Power (P) Watt: | 1000.00 |
| Resistance (R): | Yes |
| Characteristic Curve: | U/I/P autoranging |
| Human Interface: | Touchpanel & Menue |
| ext. control – analogue 0-5V/0-10V: | Yes |
| external control – GPIB (IEEE488): | No |
| external control – USB: | Yes |
| external control – RS232: | Yes |
| external control – CAN: | Yes |
| external control – LAN: | Yes |
| external control – Profibus: | Yes |
| external control – DeviceNet: | Yes |
| external control – Modbus TCP: | Yes |
| function generator: | Yes |
| special feature – High-Speed: | No |
| special feature – Sink: | No |
| special feature – water cooled: | No |
