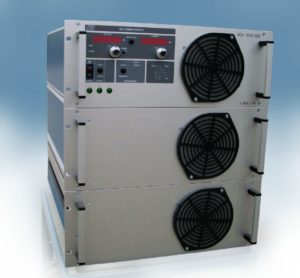

NCA / MCA Autoranging Power Supplies

The NCA/MCA series is an auto ranging power supply design in which the power supplies operate over the full range of their output voltage & current, up to the units maximum rated output power. This results in an operating range which is up to 3-times wider than that of a more conventional power supply. When fitted with the optional computer interface, the MCA/NCA series become versatile programmable power supplies. In principle, the rectified line voltage drives a square wave generator, whose AC voltage is transformed, rectified and filtered, producing the output voltage. For regulation, the square wave voltage is pulse width modulated.

Product variants

Technical Data

Features

Datasheet

Product variants

Series	V_max	A_max	P_max	Width	Height	Depth	Weight
NCA 750-55	55 V	40 A	750 W	443 mm	133 mm	350 mm	12 kg
NCA 1500-55	55 V	80 A	1.5 kW	443 mm	133 mm	550 mm	20 kg
NCA 3000-55	55 V	160 A	3 kW	443 mm	133 mm	650 mm	25 kg
MCA 750-150	150 V	15 A	750 W	443 mm	133 mm	350 mm	10 kg
MCA 1500-150	150 V	30 A	1.5 kW	443 mm	177 mm	450 mm	17 kg
MCA 3000-150	150 V	60 A	3 kW	443 mm	177 mm	650 mm	37 kg
MCA 6000-150	150 V	120 A	6 kW	443 mm	355 mm	650 mm	61 kg
MCA 9000-150	150 V	180 A	9 kW	443 mm	535 mm	650 mm	90 kg
MCA 750-400	400 V	6 A	750 W	443 mm	133 mm	350 mm	10 kg
MCA 1500-400	400 V	12 A	1.5 kW	443 mm	177 mm	450 mm	17 kg
MCA 3000-400	400 V	24 A	3 kW	443 mm	177 mm	650 mm	35 kg
MCA 6000-400	400 V	48 A	6 kW	443 mm	355 mm	650 mm	61 kg
MCA 9000-400	400 V	72 A	9 kW	443 mm	535 mm	650 mm	90 kg
MCA 750-750	750 V	3 A	750 W	443 mm	133 mm	350 mm	10 kg
MCA 1500-750	750 V	6 A	1.5 kW	443 mm	177 mm	450 mm	16 kg
MCA 3000-750	750 V	12 A	3 kW	443 mm	177 mm	650 mm	33 kg
MCA 6000-750	750 V	24 A	6 kW	443 mm	355 mm	650 mm	61 kg
MCA 9000-750	750 V	36 A	9 kW	443 mm	535 mm	650 mm	90 kg
MCA 750-1500	1.5 kV	1.5 A	750 W	443 mm	133 mm	350 mm	10 kg
MCA 1500-1500	1.5 kV	3 A	1.5 kW	443 mm	177 mm	450 mm	17 kg
MCA 3000-1500	1.5 kV	6 A	3 kW	443 mm	177 mm	650 mm	32 kg
MCA 6000-1500	1.5 kV	12 A	6 kW	443 mm	355 mm	650 mm	61 kg
MCA 9000-1500	1.5 kV	18 A	9 kW	443 mm	535 mm	650 mm	90 kg
MCA 750-3000	3 kV	750 mA	750 W	443 mm	133 mm	350 mm	10 kg
MCA 1500-3000	3 kV	1.5 A	1.5 kW	443 mm	177 mm	450 mm	17 kg
MCA 3000-3000	3 kV	3 A	3 kW	443 mm	177 mm	650 mm	32 kg
MCA 6000-3000	3 kV	6 A	6 kW	443 mm	355 mm	650 mm	61 kg
MCA 9000-3000	3 kV	9 A	9 kW	443 mm	535 mm	650 mm	90 kg

Technical Data

Features

Datasheet

Mains connection	≤ 1500W: 230V ±10% 47Hz to 63Hz ≥ 3000W: 400V ±10% 47Hz to 63Hz, three-phase
Ambient temperature	0°C to +40°C
Setting range	from approx. 0.1% to 100%
Setting resolution	±1 x 10^-4
Residual ripple (0-10MHz)	< 2 x 10^-4pp + 200mVpp
Recovery time	Voltage control: < 1ms for load changes from 10% to 100% or from 100% to 10% Current control: < 10ms for load changes causing an output change of less than 10% of the rated voltage
Setting time at nominal load	< 300ms for changes of the output voltage from 10% to 90% or 90% to 10%
Discharge time constant for output without load	approx. 10sec for MCA NCA have active down regulation.
Deviation	for ±10% mains voltage variation: ±1 x 10^-5 for no load / full load: < 5 x 10^-4 over 8 hours under constant conditions: < ±2 x 10^-4 within the temperature range: < ±1 x 10^-4 / K
